US to EU Conversion of 16mm projectors

PostSat Apr 07, 2012 4:49 am

Is anyone familiar with the necessary steps to adapt an Elmo CL-16 from the US voltage system, so that it can operate in Germany? I was looking at the converter boxes for large appliances as a possibility. There's a rumor online that the Elmo *might* have an internal converter switch.

On the web there are suggestions and speculations about this topic but not one response that gives the definitive solution. Before I open up the projector's sealed housing and make a mess of things I figured I'd ask beforehand.
Offline
User avatar

silentfilm

Moderator

  • Posts: 6859
  • Joined: Tue Dec 18, 2007 12:31 pm
  • Location: Dallas, TX USA

Re: US to EU Conversion of 16mm projectors

PostSun Apr 08, 2012 5:55 pm

There is a belt that has to be switched on the inside of the projector. I'll have to see if I can find my projector instruction book.
Offline
User avatar

Ed Watz

  • Posts: 236
  • Joined: Sun Dec 30, 2007 5:47 pm
  • Location: Germany (somewhere in Europe)

Re: US to EU Conversion of 16mm projectors

PostMon Apr 09, 2012 3:11 pm

silentfilm wrote:There is a belt that has to be switched on the inside of the projector. I'll have to see if I can find my projector instruction book.


Thanks Bruce, your confirmation of this is a big help in itself! I may venture taking off the back cover tonight and investigate further.
Offline
User avatar

silentfilm

Moderator

  • Posts: 6859
  • Joined: Tue Dec 18, 2007 12:31 pm
  • Location: Dallas, TX USA

Re: US to EU Conversion of 16mm projectors

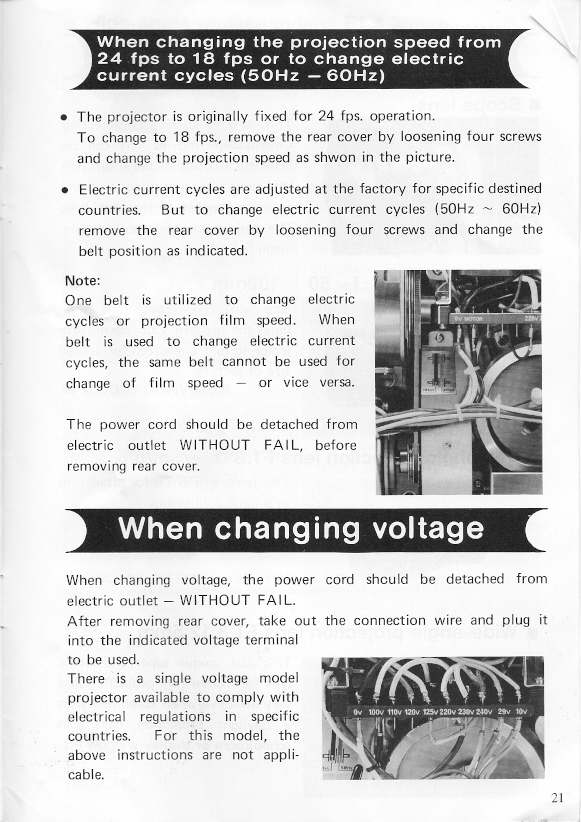

PostMon Apr 09, 2012 8:12 pm

Offline
User avatar

Ed Watz

  • Posts: 236
  • Joined: Sun Dec 30, 2007 5:47 pm
  • Location: Germany (somewhere in Europe)

Re: US to EU Conversion of 16mm projectors

PostTue Apr 10, 2012 6:47 am

Bruce, thank you so much, this is exactly what I was hoping for. One can obtain 16mm projectors easily enough these days, but to locate the projector's manual is another matter! As a certain 16mm film seller often says on Ebay, "it's scarcer than hen's teeth!" Thank you again.
